Glass Reinforced Epoxy (GRE) Connectors

  • Impulse

Overview

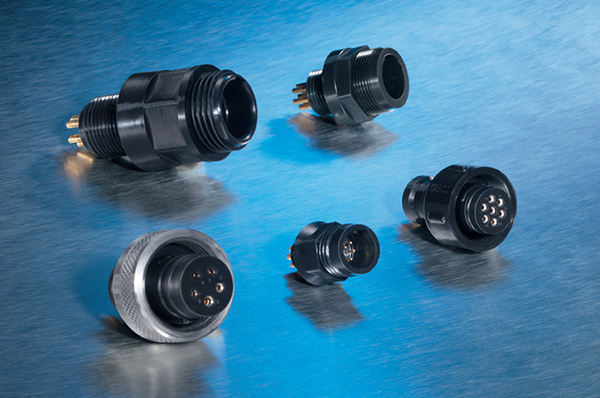

GRE Image
GRE Image

Key Features:

  • ​Glass reinforced epoxy bulkhead connectors with solder pots.
  • ​Up to 20,000 PSI pressure rating in mated condition
  • Cable connector plugs and receptacles can be overmolded using neoprene or polyurethane.​

Benefits:

​​Glass reinforced epoxy ​​bulkhead connectors with solder pots. Cable ​connector plugs can be ​overmolded with ​​neoprene or polyurethane.​

Waterproof, submersible electrical connectors rated up to 20,000 psi. Specifically designed for harsh environments, the GRE connectors from Teledyne Impulse are rugged and reliable connections for ROVs, AUVs, underwater instrumentation, and others areas of high pressure or extreme conditions.

 # of ContactsVoltage RatingBulkhead ThreadMated Pressure Rating
XSJ2,36009/16"-1810,000
​4,5,7,9,103009/16"-1810,000
XSE2800¾"-1610,000
​3700¾"-1610,000
​4600¾"-1610,000
​6,7500¾"-1610,000
​8400¾"-1610,000
​10300¾"-1610,000
​12250¾"-1610,000
XSL2,46001"-1420,000
​5,6,85001"-1420,000
​10 (#16)4001"-1420,000
​10 (#20), 12,14,16,202001"-1420,000
XSM4,8,12,166001 ½"-1210,000
​24,364001 ½"-1210,000


Specifications

  • Molded glass reinforced epoxy (GRE)
  • One to 36 contacts.
  • 200 VDC to 600 VDC (higher voltage ratings available upon request)
  • Up to 20,000 PSI in mated condition.​
  • The conductor insulation and jacket material of specified cable determines overmold material
  • Cable connector plugs and receptacles are supplied unterminated unless cable termination is specified at time of order
  • Special cable connector plugs available for use with oil filled tubes. (XSJ and XSL)

Applications

  • Light to medium duty applications
  • Hazardous environment
  • Power transmission
  • Signal telemetry
  • FIB Field installable applications
  • CCR used in a variety of environments where cable to cable connection is necessary
