Profiling Range*
(long-range mode/ high-resolution mode)
|
17 m / 13 m
|
65 m / 50 m
|
166 m / 126 m
|
Bottom Tracking (BT) Range*
|
27 m
|
103 m
|
280 m
|
Velocity Accuracy
(Profiling and BT)
|
0.3% of measured value +- 0.3 cm/s
|
0.3% of measured value +- 0.3 cm/s
|
0.5% of measured value +- 0.3 cm/s
|
Cell Size
|
0.05-4.0 m
|
0.1-6.0 m
|
0.2-8.0 m
|
Minimum Blanking
|
0.2 m
|
0.4 m
|
0.5 m
|
Max Sampling Rate
|
8 Hz
|
4 Hz
|
2 Hz
|
Max Sampling Rate with Five Beams
|
4 Hz
|
2 Hz
|
1 Hz
|
*Ranges specified are typical at temperature 5°C and salinity 35 psu, using maximum transmit voltage.
PROFILE PARAMETERS
- Velocity Resolution: 0.1 cm/s
- Velocity Range: ± 5m/s (default); ± 20m/s (max)
- Max #of Cells: 255
- Precision at default cell size: 3.6 cm/s
|
ECHO INTENSITY PROFILE
- Vertical Resolution: Depth cell size
- Dynamic Range: 80 dB
- Precision: ±1.5 dB
- Independent high-resolution echosounder ping
|

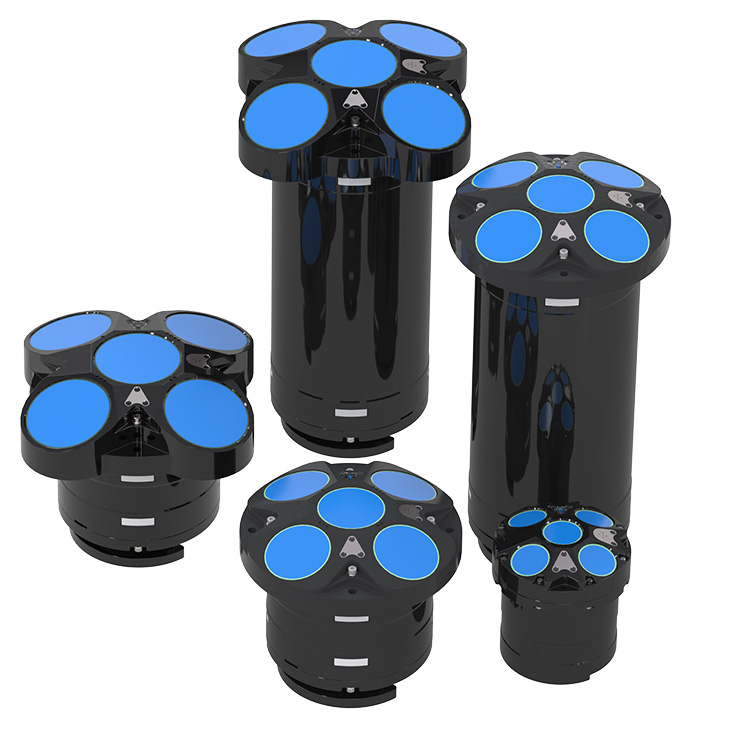

TRANSDUCER & HARDWARE

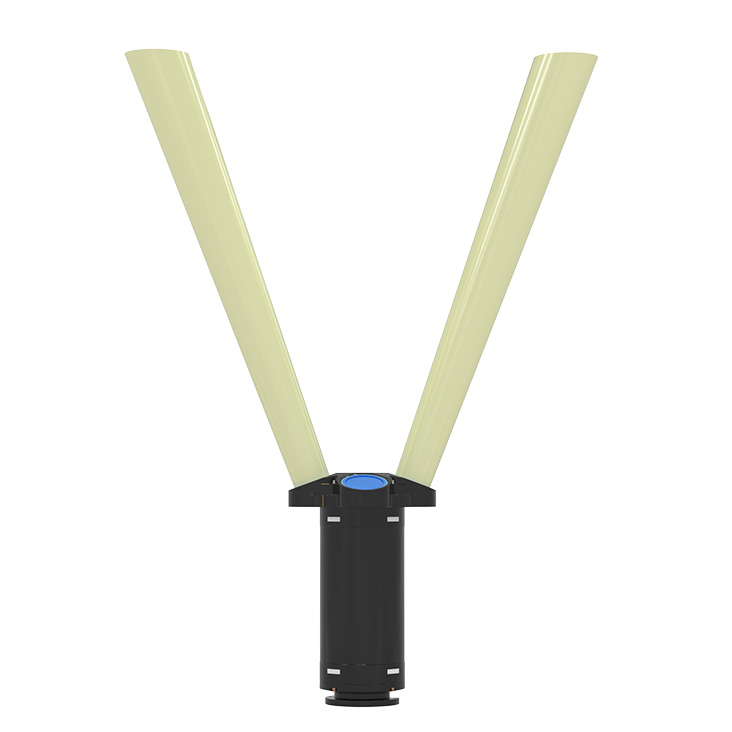

- Beam Angle: 20°

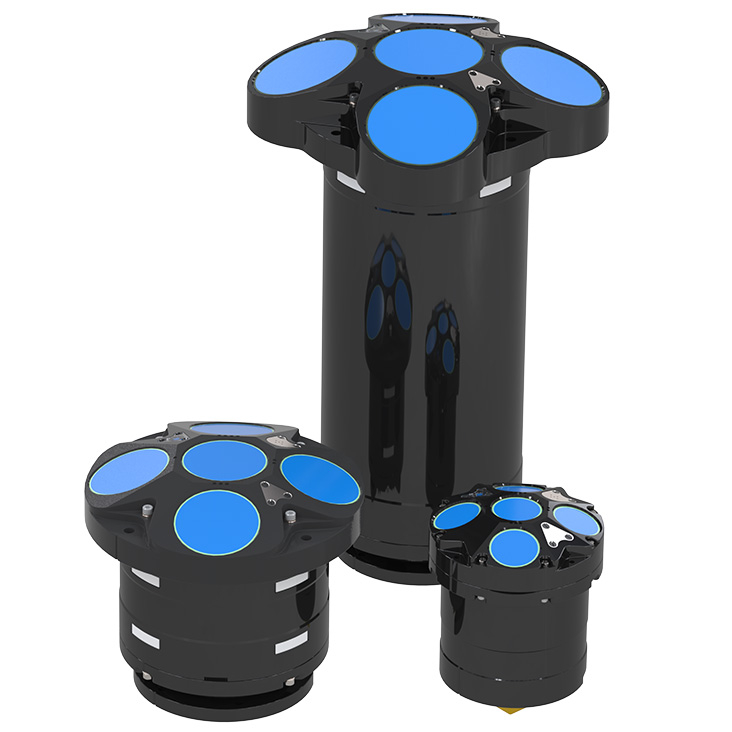

- Configuration: 4-beam, convex; 5th beam vertical
- Depth Rating: 300 m
- Materials: Transducer, housing, and end cap: plastic; all titanium hardware

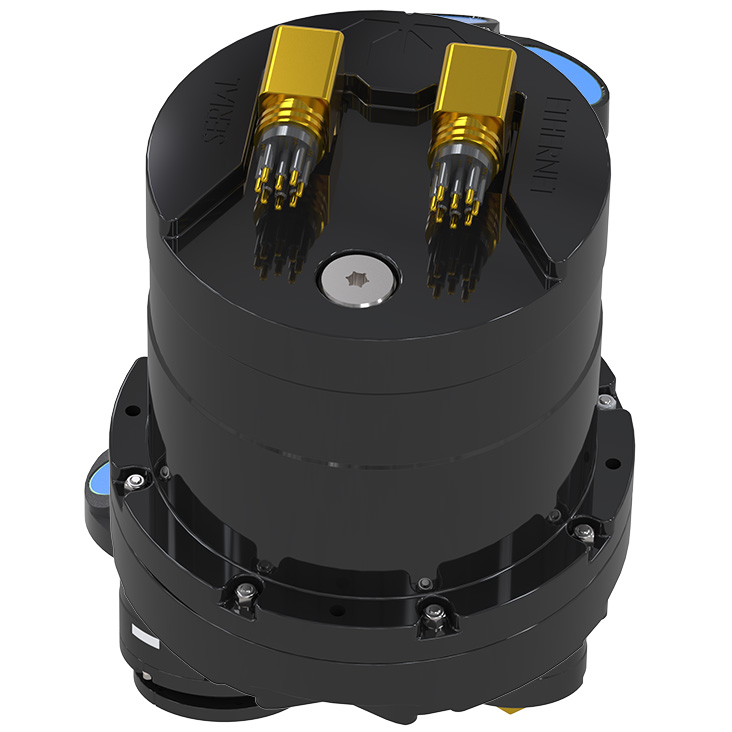

- Connector: Metal shell; 8-pin MCBH
- Communications: Ethernet (802.11 b/g/n/TCPIP) and configurable RS232/422 (both are standard features)
- Recorder: 64 GB Micro SD card
|
STANDARD SENSORS
- Temperature: Range -5°C to 45°C;
- Precision ± 0.5°C; Resolution 0.01°
- Heading (AHRS; solid state magnetometer):
- Accuracy 2° RMS <20°, Resolution 0.01°
- Tilt (AHRS; MEMS accelerometers): +/- 2 deg (dynamic), +/- .5 deg (static, <30 deg)
- Pressure Sensor: Range 300 m,
- Accuracy 0.1% FS / better than 0.002% of full scale
|
ENVIRONMENTAL
- Operating Temperature: -5°C to 45°C
- Storage temperature (without batteries): -30°C to 60°C
|
POWER
- External DC Input: 12-48 VDC

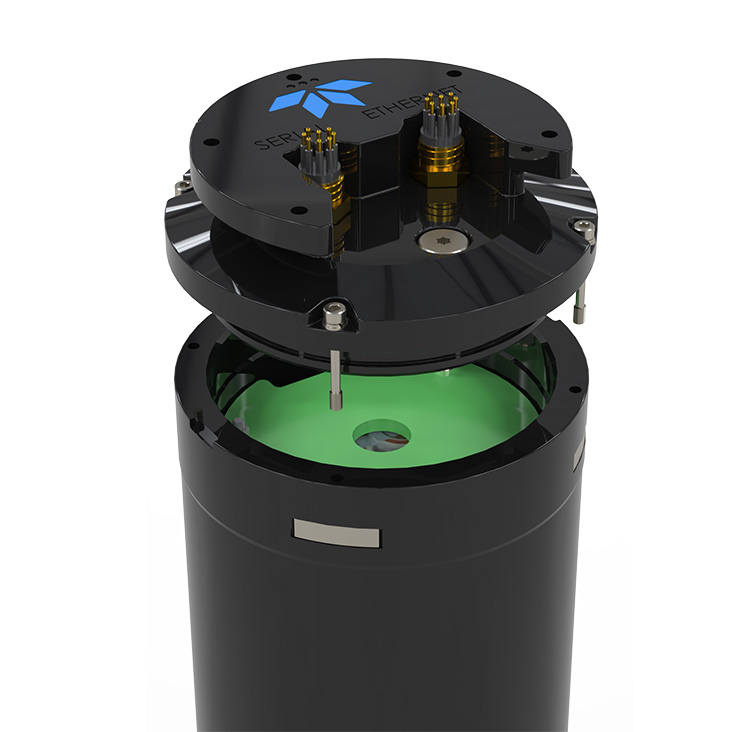

- Internal Battery Voltage: 29 VDC new
- Battery Pack at 0°C: 510 watt hours
|
SOFTWARE
- Included Teledyne RDI Software: ADCP Utilities
(view options for real-time data and recorded data)
|
